What instruments and equipment are needed to test PCBA
PCBA testing (Printed Circuit Board Assembly Testing) refers to the process of testing printed circuit board assembly. During the PCBA production process, in order to ensure product quality and stable performance, comprehensive and accurate testing is crucial.

So, what equipment is needed for PCBA testing?

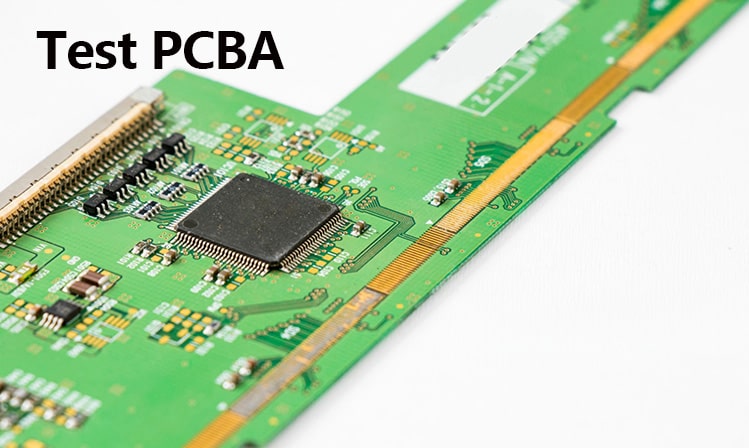

test pcba

Testing equipment required for PCBA processing

1. PCBA testing requires the use of testing instruments. Common PCBA testing instruments include multimeters, oscilloscopes, signal generators, spectrum analyzers, etc. These testing instruments can test components on the circuit board, such as measuring resistance, voltage, current, etc. A multimeter is a common measurement tool that can quickly measure various electrical quantities. An oscilloscope can display the waveform and amplitude of an electrical signal and is used to detect the stability and accuracy of the signal. Signal generators are used to generate various signals to simulate different working conditions. A spectrum analyzer is used to measure the frequency and amplitude of electromagnetic signals, which can help troubleshoot problems such as electromagnetic interference.

2. PCBA testing also requires the use of test fixtures. A test fixture is a tool used to fix and connect circuit boards to ensure the stability and reliability of the circuit board during testing. Test fixtures are generally made of conductive materials and can make good contact with the test points on the circuit board. Through the test fixture, the test instrument can be connected to the components on the circuit board and perform corresponding tests. The design and manufacture of test fixtures need to take into account the size, shape and layout of the circuit board to ensure matching and contact performance between the fixture and the circuit board.

3. PCBA testing also requires the use of a programmer. A programmer is a device used to program chips on a circuit board. In the PCBA production process, many circuit boards are equipped with various chips, such as microcontrollers, memories, etc. These chips need to download the corresponding program in advance to work properly. The programmer downloads the required program into the chip by connecting to the computer to complete the programming task of the circuit board.

4. PCBA testing also requires the use of testing software. Test software is generally developed by PCBA manufacturers according to product requirements and is used to control test instruments and analyze test data. The testing software can monitor and record the data during the testing process in real time, and perform data analysis and judgment. Through testing software, PCBA manufacturers can quickly locate and troubleshoot problems on the circuit board and take corresponding corrective measures in a timely manner.

5. In order to ensure the accuracy and reliability of the test, PCBA testing also requires the use of reliable power supply and isolation equipment. The power supply needs to be stable, reliable, and able to provide the required current and voltage. Isolation equipment is used to isolate interference between the circuit board and the external environment to ensure the accuracy of test results.

To sum up, the equipment required for PCBA testing includes test instruments, test fixtures, programmers, test software, and reliable power supply and isolation equipment. These devices can help PCBA manufacturers conduct comprehensive and accurate circuit board testing to ensure product quality and stable performance. Only through scientific and comprehensive testing can the reliability and market competitiveness of PCBA products be effectively improved.
