Turnkey PCB Assembly Prototype Services
The way from concept to finished product
Are you considering implementing a PCB assembly project? After a PCB project concept is finalized, how to develop it to a finished product and make sure your printed circuit board or PCB is functioning properly.
This is where our prototype PCB  assembly  can be the ideal solution. Because PCBs are such an integral part of so many electronic devices, they can be very expensive if they fail or are not adequately executed after full production. Prototyping the PCB beforehand can help you avoid this.
Prototype PCB assembly is our specialty. With our professional soldering technicians, SMT process engineers, and component procurement specialists we provide an affordable and highly flexible PCB assembly process with fast turnaround.
We handle Complete PCB Assembly for prototype quantities from 1 to 100 boards. Our proto assembly area has a unique layout design that allows a flexible combination of Automated and Manual part loading stations. We can also easily handle Fine Pitch Components and BGAs for high density FR-4 boards.
Avoid the hassle of sourcing PCB components, we will optimize the choice of packaging (cut tape, tube, bulk, etc.) versus quantity in smaller Bills of Materials (BOMs) to lower total cost. We have the ability to cross reference parts including hard to find and obsolete items. We always purchase the part numbers and manufacturers specified in your BOM, so there is no danger of part quality issues caused by unauthorized substitutions. We never make any changes to your design without your express approval.
The total Turn-Key price will be the sum of the labour PCB Assembly cost, bare PCB Fabrication cost and components cost. Instant online quotes for Prototype Board Fabrication and Prototype Assembly are available on our website. You can use these tools to estimate the "PCB + Assembly" cost in seconds.
The component prices will simply be our cost from Digi-Key Electronics, Mouser, Avnet, Arrow, Future, Newark or a specified distributor. We never mark-up any component costs or charge any handling fees.


Competitive Feature Of Our PCBA Prototype Service

Combination flexibility
Combination of PCBs and components automatic and Manual part loading stations. We can also easily handle Fine Pitch Components and BGAs for high density FR-4 ,FPC ,Rigid-flex PCB boards.
Strong Component Team
Pcbamake procurement team deal with as many component distributors worldwide such as Digi-Key Electronics,Mouser,Avnet,Arrow,Future, Newark to fulfill the procurement task in the best possible way.
Turn-Key PCB Assembly
Turn-key PCB assembly is Pcbamake core business, even in the prototype stage. ( PCB prototyping, component purchasing, circuit board assembly under one roof) kitted parts or consigned parts both are ok.
Professional Ability
Pcbamake has the ability to cross reference parts including hard to find and obsolete items. All parts are confirm with part numbers and manufacturers specified in your BOM, never change your design without your express approval.
Transparent price
Turn-Key price = labour PCB Assembly cost + bare PCB fabrication cost + components cost only (No any component costs or any handling fees)
Quck Turn & One time Delivery
1-2days assembly (Usual leadtime)
7days ( Quick Turn Fully turnkey PCB assembly leadtime)
12-15days (Common Full turkey PCB assembly leadtime )


Types of Prototype PCB Assembly
We provide you with a great variety of prototype PCB assembly services. Whether you need the standard PCB types or the more complex ones, we have you covered.
• Single FR4 boards
• Double-sided FR4 boards
• High technology blind and buried via boards
• Multilayer boards
• Thick-copper
• SMT
• High frequency
• HDI
• Rigid
• Rigid-flex
• Flex

Our prototype PCB assembly also caters for applications in a wide variety of areas such as:
• Aerospace and satellites – This include solutions for battery warming, radar installations, temperature sensors etc
• Automotive industry – We build PCB prototypes to support several automobile features, such as anti-lock brakes, security features and more
• Home appliances – we help make homes fun and exciting with solutions that support such things as coffee makers, door openers for pets and game machines etc
In addition to these, other areas we support include GPS Modules, Telecom industry, Security devices, Medical industry, and Wireless industry, among others.

PCBA Prototype Products We Made
Pcbamake is able to make all kinds of PCB assembly prototype. We provide PCB prototype service from 1 layer to 25 layers.
We can do flexible PCB, rigid PCB, flex-rigid PCB, metal core PCB, aluminum PCB and high-frequency PCB board. NO MOQ.

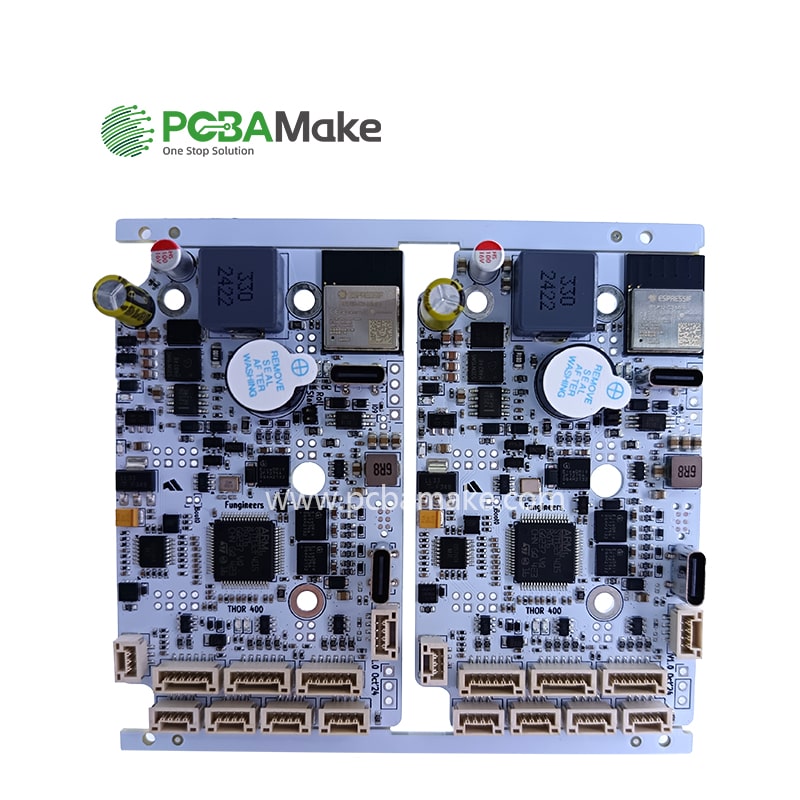

6 Layers PCB Assembly FR4

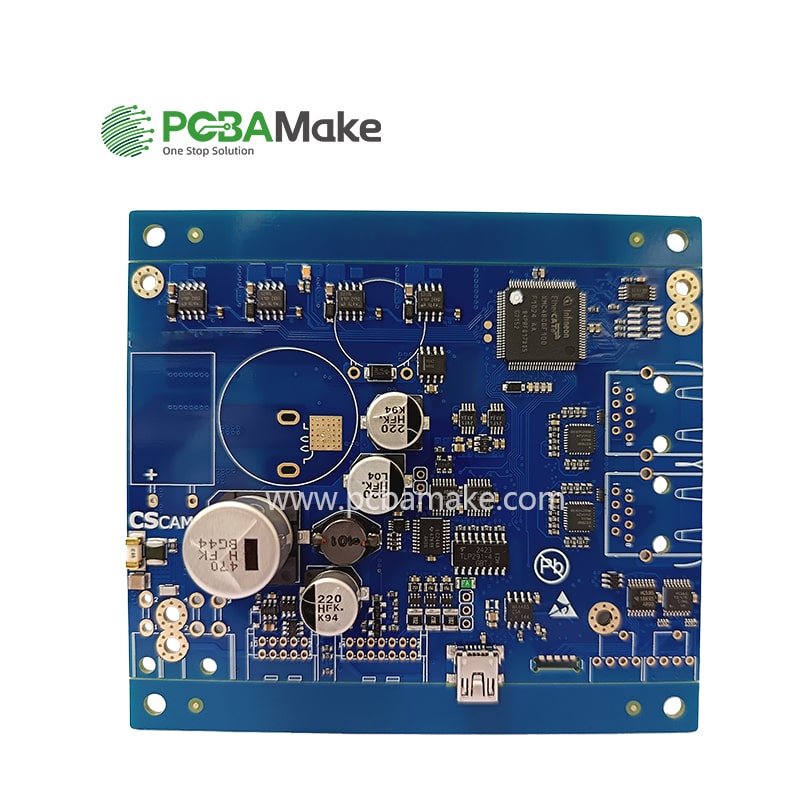

6 Layers PCB Assembly TG170

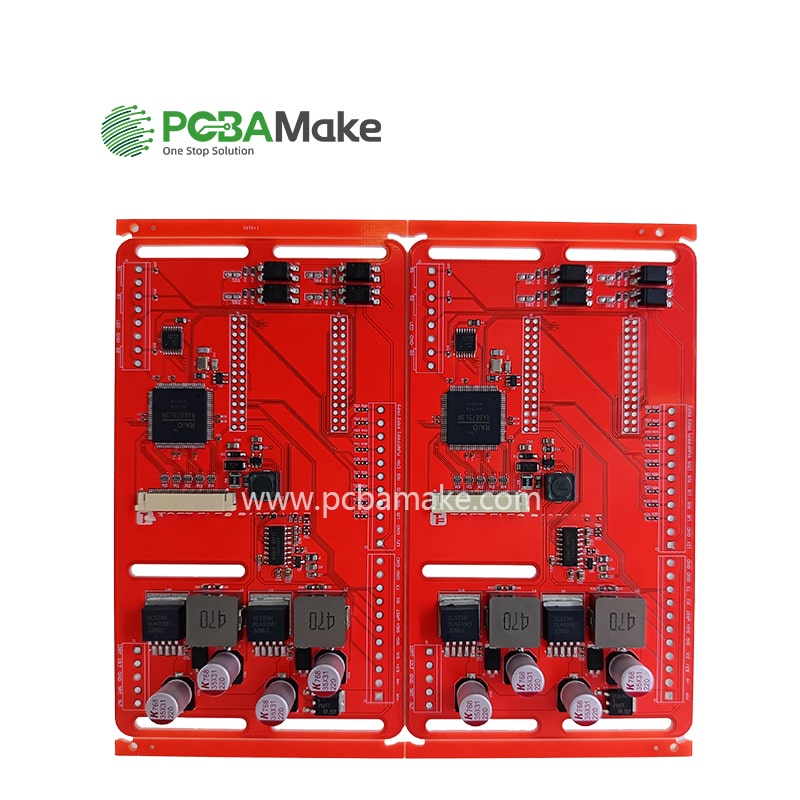

2 Layers PCB Assembly FR4

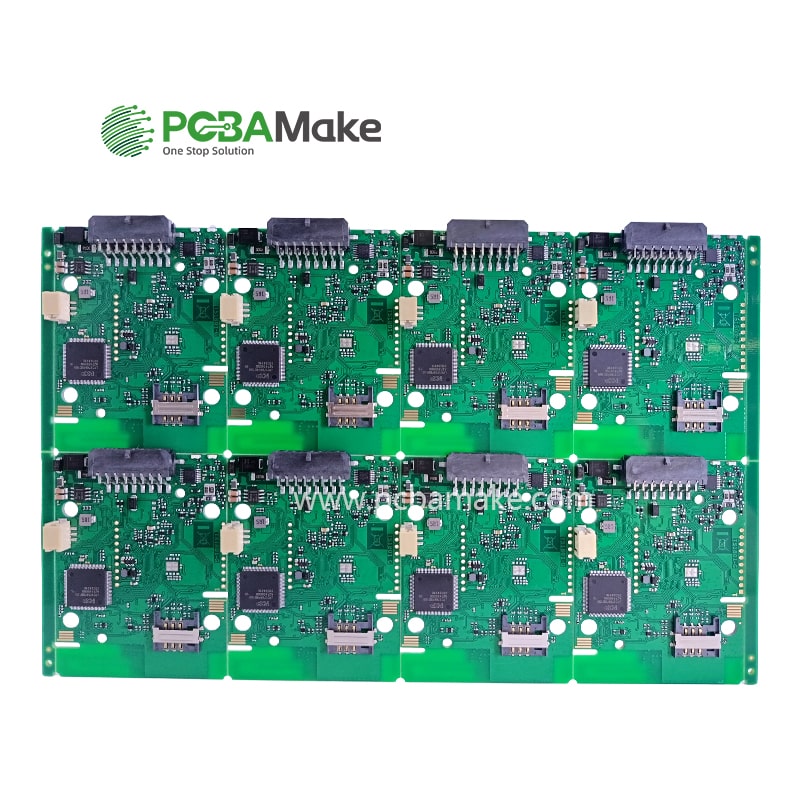

2 Layers PCB Assembly FR4

The Capacities of Prototype PCB Assembly
We have highly qualified personnel who are experts in prototype PCB assembly. We also use cutting edge technology and advanced equipment. Therefore, by partnering with us, you are choosing from the best of China’s leading specialists in the field.

The parameters of Pcbamake Technology PDB prototypes are:
• Layers: 1 to 12
• Material: Aluminum, FR-1, FR-2, High TG, FR4 halogen, FR-4, CEM-1, CEM-3
• Maximum finished thickness: 0.2 mm to 4.0 mm
• Maximum finished board side: 500 mm by 500 mm
• Minimum drilled hole size: 0.25 mm
• Min. Line width: 0.10 mm
• Min line spacing space 0.10 mm
• Copper thickness: 0.5 to 3.0 oz
• Hole tolerance: PTH: + or – 0.076, NTPH +or – 0.05
• Solder mask color: blue/red/white /white/green
