However, ENIG is not simply chosen because it is more expensive—it is chosen because it solves specific manufacturing and reliability problems.

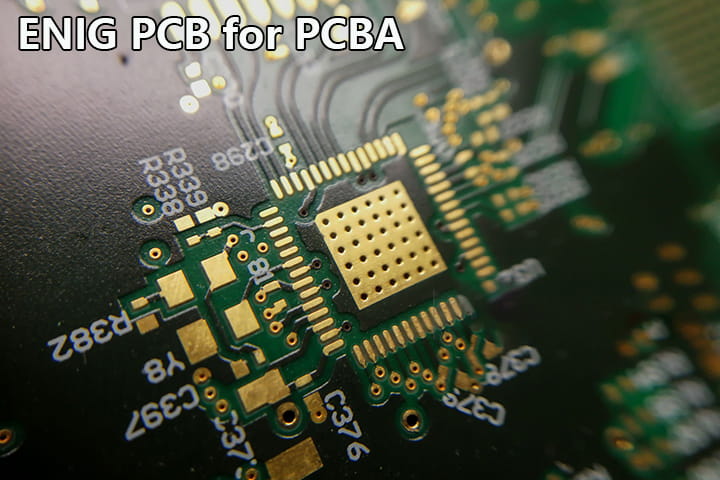

What Is ENIG Surface Finish?
ENIG is a two-layer surface finish consisting of:
An electroless nickel layer deposited on copper
A thin immersion gold layer protecting the nickel from oxidation
This structure provides excellent surface flatness and stable solderability, making ENIG widely used in high-density and high-reliability PCBA projects.

Why ENIG Is Preferred in High-End PCBA
1. Excellent Flatness for Fine-Pitch Assembly
From a PCBA standpoint, surface flatness directly affects solder joint consistency.
ENIG performs especially well with:BGA packages,QFN / LGA,0201 and smaller components
Flat pads reduce solder bridging and head-in-pillow defects during reflow.
2. Wide SMT Process Window
ENIG offers:Stable wetting behavior,Strong tolerance to reflow profile variation,Good performance in multi-pass reflow processes
This makes ENIG suitable for complex assemblies and multi-stage PCBA processes.
3. Long Shelf Life and Storage Stability
Compared with OSP and immersion silver, ENIG provides:
Better oxidation resistance
Longer storage time before assembly
This is particularly important for projects with:Staggered production schedules
Cost Consideration: Is ENIG Always Expensive?
ENIG typically has a higher unit PCB cost, but in mass production:Higher yield,Lower rework rate,More stable assembly,often offset the initial cost difference.
👉 In many high-end PCBA projects, ENIG reduces total manufacturing cost, not increases it.
