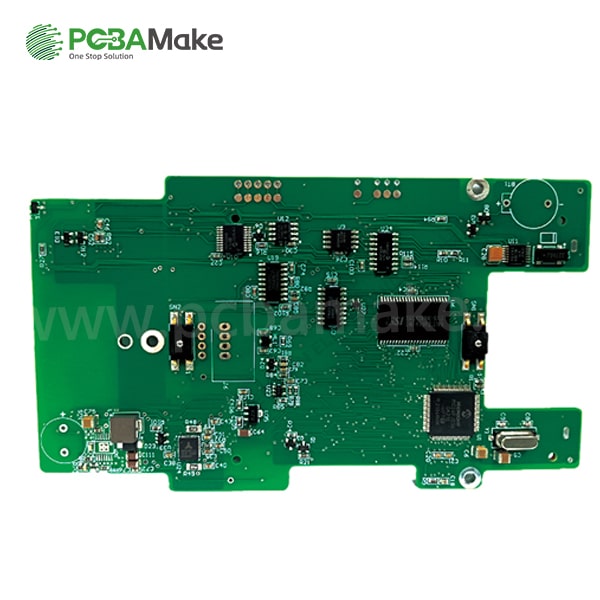

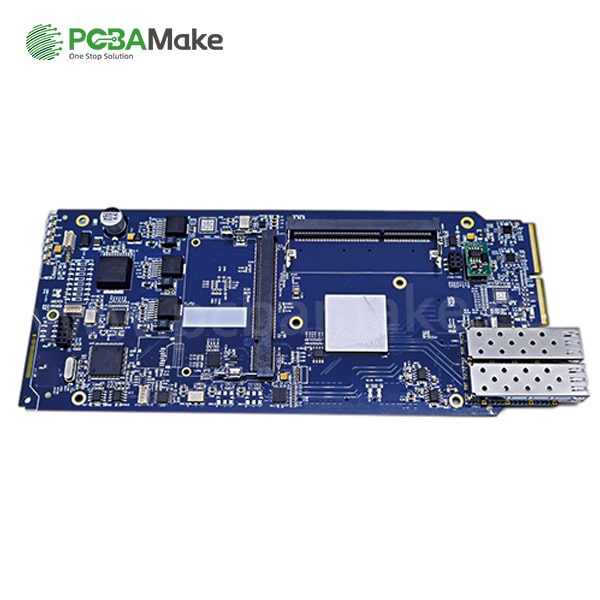

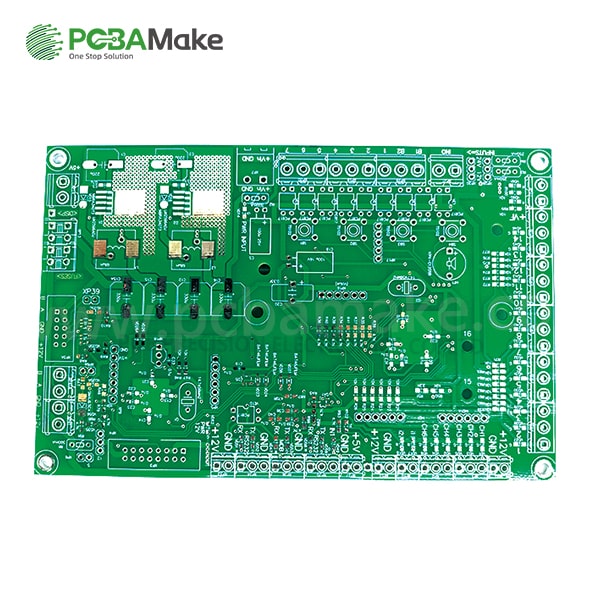

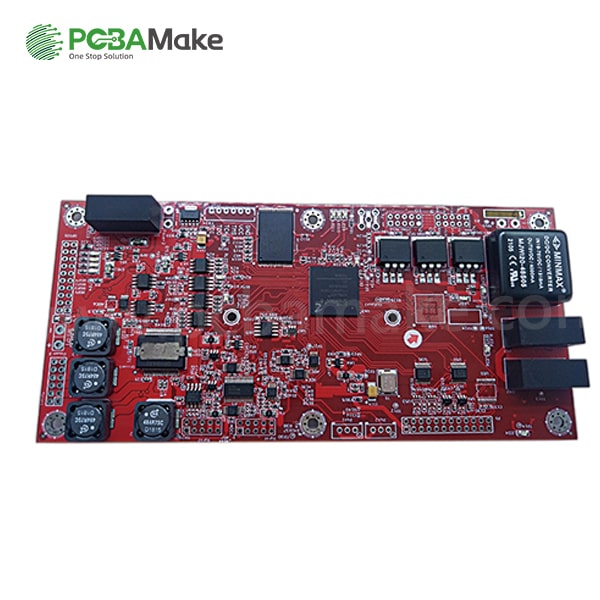

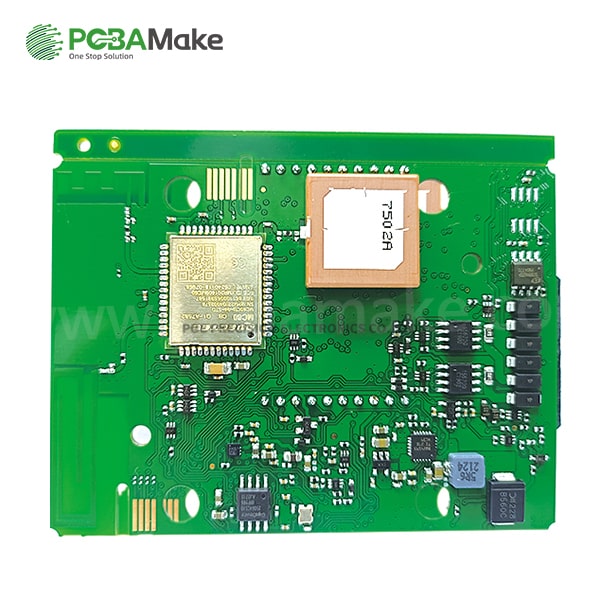

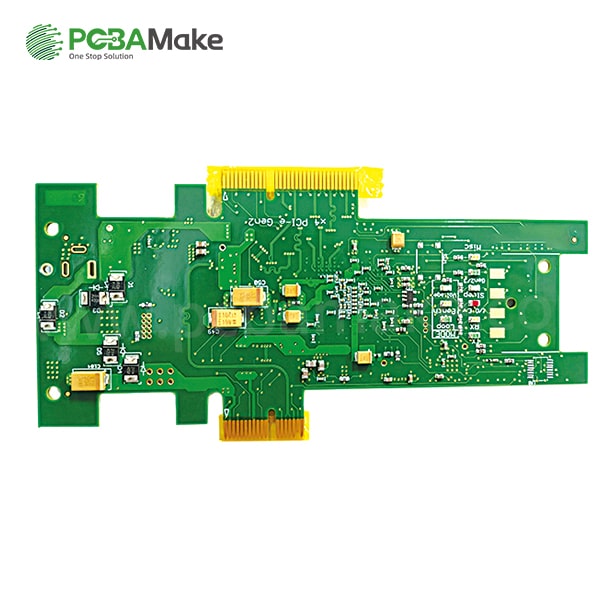

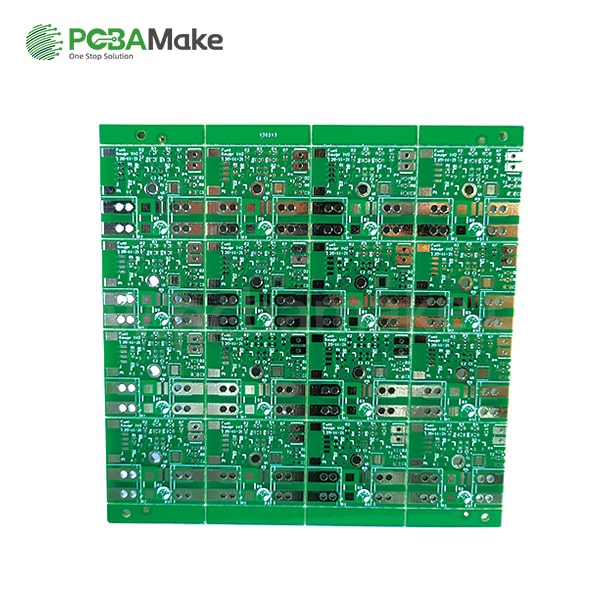

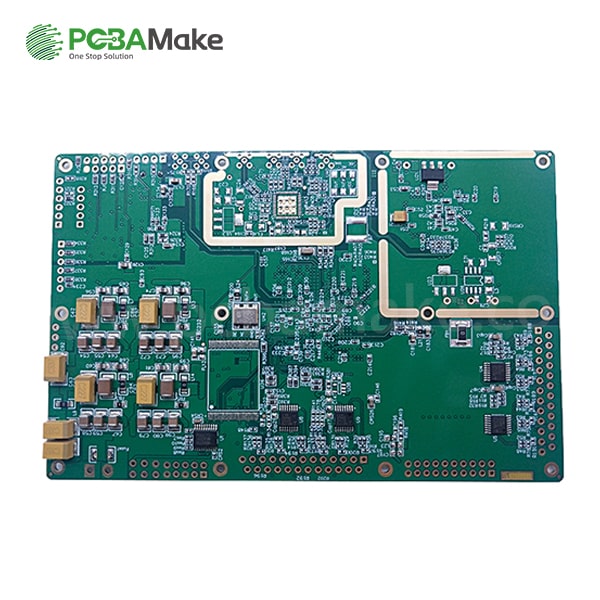

RF&Wireless PCB Assembly

Most of the PCBs we usually see are rigid PCBs

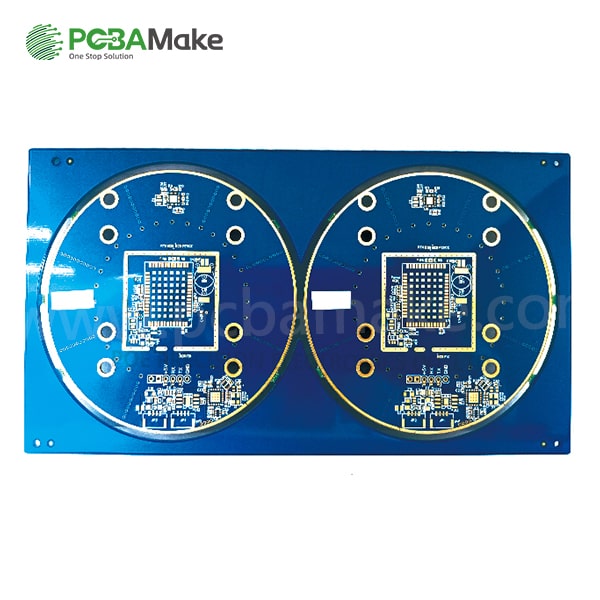

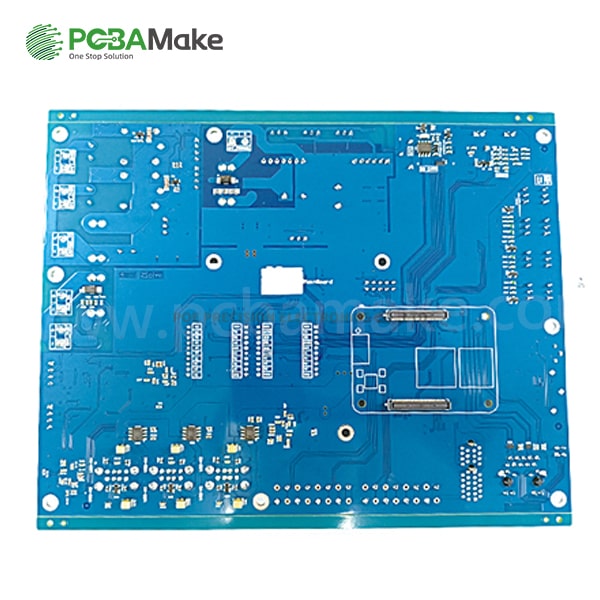

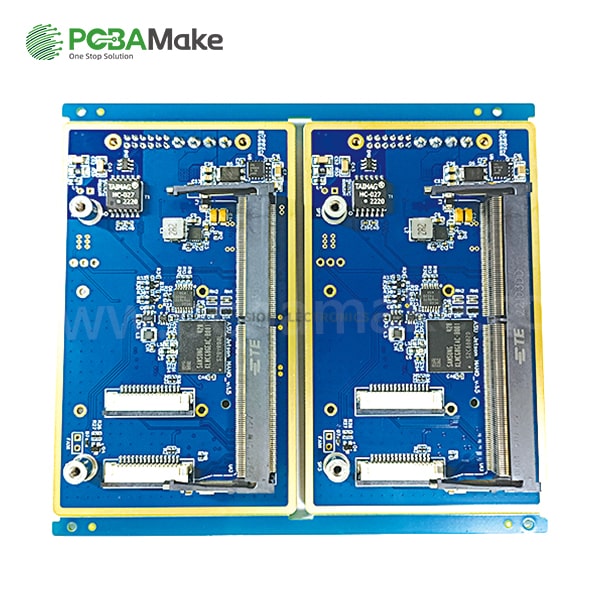

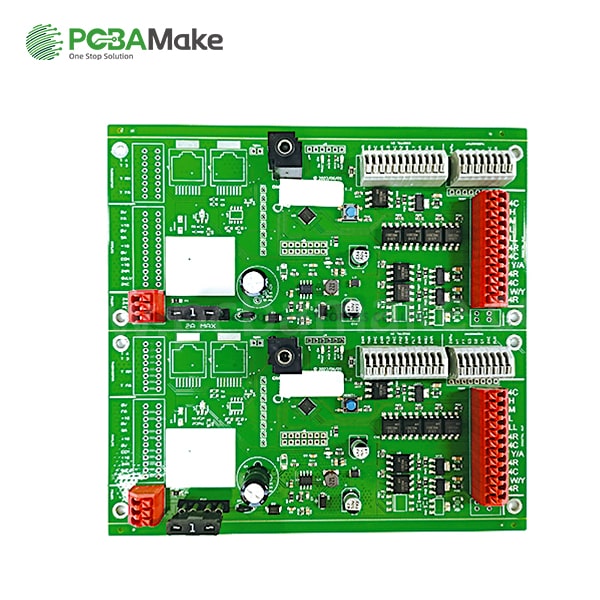

RF & Wireless PCBA
Material: FR4
Finish treatment: Immersion Gold
Copper thickness: 1oz~ 2oz
Resin plugging vias & Buried vias
Impedance Controller Board

RF & Wireless PCBA

Generally speaking, any high-frequency PCB operating above 100MHz in the PCB circuit board industry is considered a radio frequency circuit board.

RF circuit boards are used for communication signals in any application that needs to receive and transmit wireless signals. For example, some common applications mobile phones and radar devices, car collision avoidance systems and radio systems, etc.

Compared with traditional PCB circuit board layout, RF circuit board design is particularly difficult. This is due to problems that can arise when receiving or transmitting radio signals. Some of the main issues are noise susceptibility and tighter impedance tolerances. Compared to traditional circuit boards, radio and microwave signals are very sensitive to noise and have much higher requirements on PCB impedance tolerances. The best way to solve these problems is to utilize ground planning and use generous bend radii on impedance-controlled trajectories. These solutions will ultimately enable high frequency circuit boards, RF PCBs to achieve optimum performance.

RF PCB boards have many different applications including wireless technology, smartphones, sensors, robotics and security. With the advent of new technologies that push the limits of electronics, the demand for RF PCB circuit boards is on the rise.

Finding a competent RF circuit board manufacturer is crucial to ensure that PCB boards are manufactured to high quality standards and on time. POE PCB has many years of production experience in the production of high-frequency PCB boards, RF PCBs, high-frequency high-speed PCBs, etc., so choosing us is a good choice!

PCBA Application Field

We serve OEMs in multiple end markets and industries,
and the quality of service we provide to our customers is the key to our success
