PCB Stack-Up Design Considerations for High-Speed Circuits
As signal speeds continue to increase, PCB stack-up design has become a critical factor in signal integrity, EMI control, and overall product performance.
A poorly designed stack-up can cause signal degradation, excessive noise, and failed compliance testing.
Why Stack-Up Matters
The stack-up defines:
Number of layers
Copper arrangement
Dielectric materials
Ground and power planes

These factors directly affect impedance control and signal quality.

Use Dedicated Ground Planes

Continuous ground planes provide:
Stable return paths
Reduced EMI
Better signal integrity
Every high-speed signal layer should be adjacent to a solid reference plane whenever possible.
Control Impedance
Interfaces such as:
USB 3.0
PCIe
DDR Memory
Ethernet
HDMI
require controlled impedance traces.

The PCB stack-up must support the target impedance specified by the interface standard.

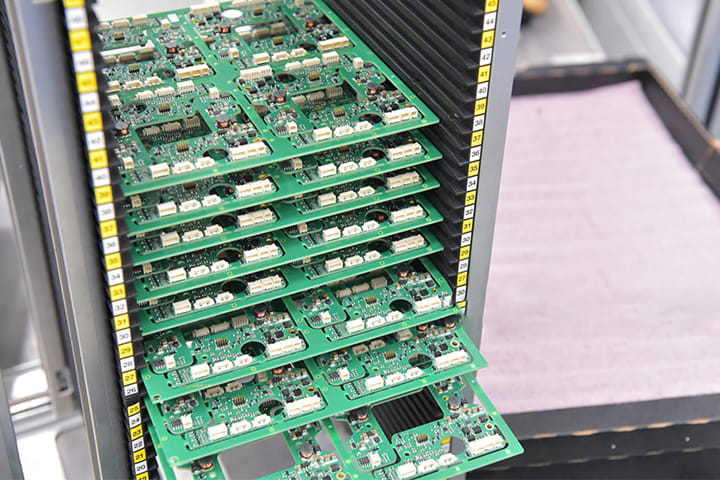

PCB Stack-Up Design

Minimize Crosstalk
Signals routed too closely together can interfere with one another.
Best practices include:
Increasing trace spacing
Separating noisy signals
Using ground shielding
Material Selection
High-speed applications often require low-loss materials instead of standard FR-4.
Examples include:
Rogers materials
Megtron series
Isola high-speed laminates
The correct material reduces signal loss at high frequencies.
Work With Your PCB Manufacturer Early
Manufacturers can recommend stack-up configurations that balance:
Performance
Manufacturability
Cost

Early communication often prevents expensive redesigns later.

An optimized PCB stack-up improves signal integrity, reduces EMI issues, and increases product reliability. For high-speed designs, stack-up planning should begin at the earliest stage of PCB development.
