High Tg PCB vs. Standard FR4: Key Differences, Material Behavior, and Application Trade-offs
In PCB design and manufacturing, material selection directly affects reliability, thermal stability, and long-term performance. While standard FR4 remains the industry default, High Tg PCB materials are increasingly specified in demanding applications.
What Does Tg Mean in PCB Materials?Tg (Glass Transition Temperature) refers to the temperature at which the epoxy resin in the laminate transitions from a rigid, glassy state to a softer, rubber-like state. Beyond this point, the material experiences a sharp increase in thermal expansion and a reduction in mechanical stability.

Standard FR4 Tg: typically ~130–140°CHigh Tg materials: typically ≥170°C (some reach 180–200°C)
This difference significantly impacts performance under thermal stress.
Thermal Stability and ReliabilityThe most critical distinction lies in how the material behaves under elevated temperatures.
Standard FR4More prone to Z-axis expansion once Tg is exceeded
Higher risk of plated through-hole (PTH) cracking
Reduced dimensional stability during multiple reflow cycles

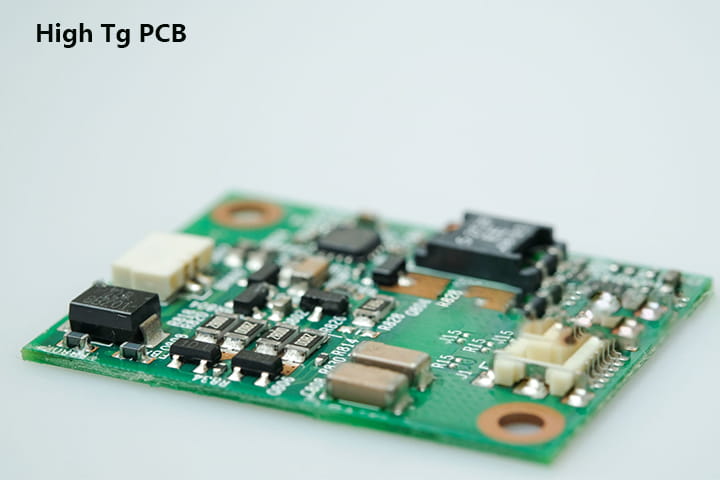

High Tg PCBMaintains structural integrity at higher temperatures
Lower coefficient of thermal expansion (CTE) above Tg
Better resistance to delamination and barrel cracking
Insight: In lead-free assembly processes (typically >245°C peak), High Tg materials significantly reduce failure risks, especially in multilayer boards.
Mechanical and Dimensional PerformanceHigh Tg materials exhibit improved mechanical robustness under thermal cycling:
Lower warpage and twist, especially in large panels
Improved layer-to-layer registration stability
Better performance in high layer count PCBs (≥8 layers)
In contrast, standard FR4 may experience dimensional drift when exposed to repeated thermal excursions, affecting impedance control and fine-pitch component alignment.
Moisture ResistanceMoisture absorption plays a critical role in PCB reliability, particularly during soldering.
Standard FR4: higher moisture absorption rate → increased risk of CAF (Conductive Anodic Filament) and delamination
High Tg PCB: improved moisture resistance → better performance in humid environments and harsh storage conditions
Electrical Performance ConsiderationsWhile both materials are suitable for general-purpose electronics, differences emerge in high-performance designs:
High Tg materials typically offer more stable dielectric properties over temperature
Standard FR4 may exhibit greater Dk/Df variation at elevated temperatures
For high-speed or high-frequency circuits, consistency under thermal load is often more critical than nominal dielectric values.
Manufacturing and Cost Trade-offsFactor Standard FR4 High Tg PCB
Material Cost Lower Higher
Processing Difficulty Easier Slightly more demanding
Thermal Reliability Moderate High
Suitable Applications Consumer electronics Industrial, automotive, telecom
High Tg laminates may require tighter lamination profiles and process control, but they integrate seamlessly into most modern PCB fabrication lines.
Typical Application ScenariosStandard FR4 is suitable for:Low-cost consumer electronics
Single/double-layer or low-layer-count PCBs
Applications with minimal thermal stress
High Tg PCB is preferred for:Lead-free assembly environments
Automotive electronics (under-hood conditions)
Industrial control systems
High-layer-count and high-density interconnect (HDI) boardsChoosing between High Tg PCB and standard FR4 is not just a cost decision—it is a reliability strategy. When operating temperatures, thermal cycling, or long-term durability are concerns, High Tg materials provide a clear advantage. For less demanding applications, standard FR4 remains a cost-effective and widely accepted solution.
For OEMs and engineers, aligning material selection with the product’s thermal and mechanical requirements is essential to avoid latent field failures and ensure consistent performance over the product lifecycle.
