When Does Your PCBA Need BGA, X-Ray or FCT?

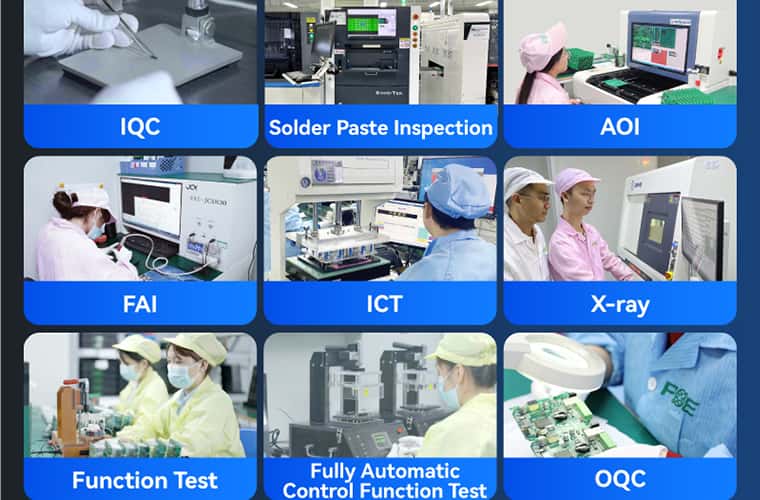

BGA, X-Ray and FCT are often discussed together in complex PCBA projects, but they solve different manufacturing problems.
The decision should be based on component structure, inspection requirements and product risk.
When Is BGA Assembly Appropriate?
BGA is typically selected when the design requires:
- High pin counts
- High component density
- Compact PCB layouts
- High-performance processors or memory
The trade-off is that solder joints are located beneath the package, making visual inspection more difficult.
For this reason, BGA projects require tighter process control and appropriate inspection.
When Should X-Ray Be Considered?
X-Ray is most valuable when critical solder joints are hidden from normal optical inspection.
Typical examples include:
- BGA
- QFN
- Bottom-terminated components
- High-density assemblies
For a standard SMT board without hidden solder joints, X-Ray may not provide enough additional value to justify the cost.
The decision should therefore be based on hidden-joint risk, not simply whether the technology is available.
When Is FCT Necessary?
FCT becomes important when simply confirming component placement or soldering quality is not enough.
Consider FCT when the PCBA needs to verify:
- Communication interfaces
- Sensors
- Inputs and outputs
- Power behavior
- Product-specific functions
A board can pass AOI and still fail during operation. FCT addresses this gap by testing the assembled board under defined operating conditions.
Do You Need All Three?
Not necessarily.
For example:
Standard SMT board
→ AOI may provide sufficient assembly inspection.
BGA-based high-density board
→ AOI + X-Ray may be appropriate.
Functional industrial controller
→ AOI + FCT may be required.
Complex BGA-based industrial PCBA
→ AOI + X-Ray + FCT may provide broader coverage.
The correct combination depends on the actual risks of the product.
A Better Way to Select Testing
Instead of asking:
“Do I need X-Ray?”
Ask:
“Which defects could remain undetected with my current inspection process?”
This approach helps balance quality coverage and testing cost.
Final Takeaway
BGA is a component/assembly choice for high-density designs.
X-Ray addresses hidden solder-joint inspection.
FCT verifies actual product functionality.
They are not interchangeable technologies, and not every
PCBA requires all three.
A good PCBA manufacturer should evaluate the PCB design, BOM, production volume and product requirements before recommending the testing combination.
