Flex PCB Assembly: A Complete Guide for Modern Electronics

From consumer electronics to medical devices and automotive systems, flexible printed circuit boards (Flex PCBs) enable innovative product structures that rigid PCBs cannot achieve.

What Is Flex PCB Assembly?

Flex PCB assembly refers to the process of mounting electronic components onto flexible printed circuit boards made from polyimide or other flexible substrates. Unlike rigid PCBs, flex circuits can bend, fold, or twist during installation and operation, providing greater freedom in product design and mechanical integration.

A typical flex PCBA project includes flexible PCB fabrication, component sourcing, SMT or THT assembly, controlled reflow soldering, and comprehensive testing.

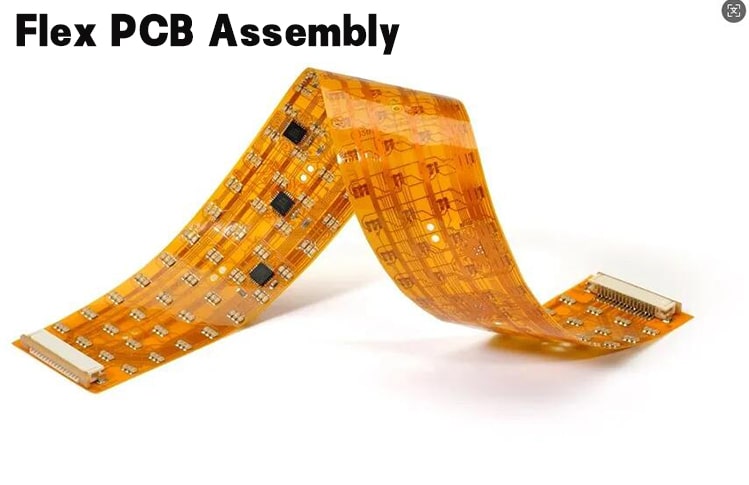

flex pcba

Flex PCB Assembly Process

Due to the nature of flexible substrates, flex PCB assembly requires stricter process control than rigid PCB assembly.

  • The process begins with manufacturing the flexible PCB using polyimide-based materials and preparing it for assembly. To maintain flatness during production, flex circuits are usually mounted on dedicated carriers or fixtures before solder paste printing.
  • Next, solder paste is accurately printed, and electronic components are placed using high-precision SMT equipment. During reflow soldering, temperature profiles are carefully optimized to prevent overheating or deformation of the flexible material.
  • After soldering, the assembled boards undergo inspection procedures such as SPI and AOI. X-ray inspection is applied when fine-pitch or BGA components are involved.
  • Finally, electrical and functional testing is performed to ensure the flex PCBA meets performance and reliability requirements before shipment.
Key Advantages of Flex PCB Assembly
Reduced Size and Weight
Flex PCBs eliminate the need for connectors and cables, significantly reducing product size and overall weight.
Improved Reliability
Fewer interconnections result in fewer potential failure points, enhancing long-term reliability.
Greater Design Freedom
Flex circuits enable complex shapes and 3D packaging that rigid PCBs cannot support.
Excellent Dynamic Performance

Flex PCBs perform exceptionally well in applications involving repeated bending or movement.

Common Applications of Flex PCBA

Flex PCB assemblies are widely used in:

Consumer electronics (smartphones, cameras, wearable devices)

Medical devices (diagnostic and imaging systems)

Automotive electronics (sensors, instrument clusters)

Industrial control systems

Aerospace and defense applications

Key Challenges in Flex PCB Assembly

Despite its advantages, flex PCB assembly presents several unique challenges:

  • Flexible materials are more sensitive to heat during reflow soldering
  • Boards require special handling and support fixtures
  • Material selection and coverlay design directly affect performance
  • Placement accuracy and process consistency are critical
These challenges make experience and process control essential when selecting a flex PCBA supplier.

Quality Control in Flex PCB Assembly

Professional flex PCB assembly follows strict quality control standards, including:

  • SPI, AOI, and X-ray inspection
  • Electrical and functional testing
  • IPC-compliant manufacturing processes
  • Customized fixtures for stable assembly and testing

One-Stop Flex PCB Assembly Services

Partnering with a one-stop PCBA manufacturer simplifies supply chain management and shortens lead time. A complete flex PCB assembly service typically covers flexible PCB fabrication, component sourcing, SMT and THT assembly, inspection, testing, and final quality control.

This turnkey approach ensures higher consistency, better cost efficiency, and faster time to market.

Why Choose pcbamake for Flex PCB Assembly

PCBAMake offers reliable flex PCB assembly supported by extensive manufacturing experience and a true one-stop service model. From flexible PCB fabrication to component sourcing, SMT assembly, and testing, all processes are managed under strict IPC-compliant quality control. With optimized reflow profiles, dedicated carriers, and proven expertise in thin and high-density flex circuits, pcbamake ensures stable assembly and consistent results. Customers benefit from flexible BOM sourcing options, clear communication, and dependable quality from prototype to volume production.
